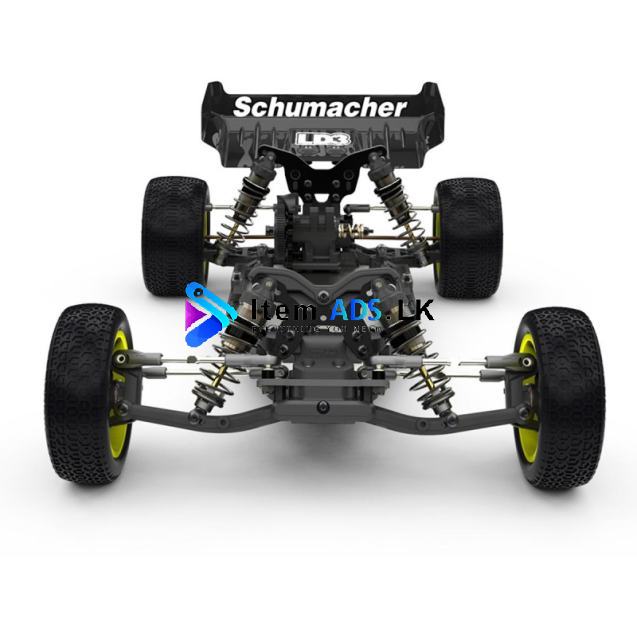

Schumacher Cougar LD3D 1/10 2WD Buggy Kit
The LD3 is Schumacher's enhanced 1/10th 2WD racing buggy, already a proven winner in numerous national and international races, even earning a World Championship Podium finish. This upgraded model excels in terms of durability, tuneability, weight reduction, and speed. With three distinct chassis specifications available, the LD3 conquers all types of tracks and conditions.
LD3D Features:
Rear layback gearbox
Updated Motor mount
Updated transmission housings
Redesigned smaller idler gear
Updated Rear Front alloy strap
Updated Rear hub and inserts for improved rear grip
Longer 69.5mm rear CVD driveshafts
2mm Rear Hexs
Shared Features:
Front wishbone
Front hub carrier with increased adjustability
Front 5 deg caster block
Improved pivot system for the king pin and outer hinge pin
4mm S2 lightened front and rear shock towers for a lower center of gravity and improved geometry
13mm Big Bore shocks
2.5mm reduced weight alloy chassis design, recessed radio tray, and redesigned rear end
Internal transmission with redesigned twin pad through slipper for a more centralized assembly
Moulded internal idler gear with improved Teflon-coated material
Rear suspension wishbones and alloy rear strap with greater wheelbase adjustment and updated shock positions
Specifications:
Scale: 1/10
Length: 15.5in (395mm)
Width: 9.6in (245mm)
Wheelbase: 10.8-11.2in (275-285mm)
Drive: 2WD
Power Source: Electric
Assembly Level: Kit
Includes:
(1) LD3D 2WD Buggy
Needed to Complete:
1/10 scale electric motor and electronic speed control
7.4V-7.6V 2S LiPo with "shorty" battery dimensions
Compatible Battery Charger
2-channel surface transmitter, 2-channel receiver, and steering servo
Polycarbonate specific spray paint for body
1/10 scale off-road tires
Tools & Silicone Fluids
